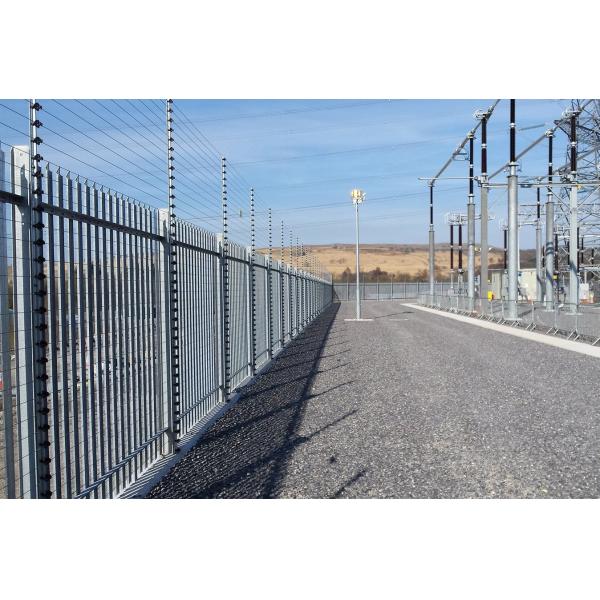

Hot Dip Galvanised W Profile Triple Pointed Top Security Palisade
Fence
Product Description
We supply Palisade Fencing in 2.75 meter bays, as is the industry
standard for this security fencing product.
Each 2.75 meter Palisade Bay Contains:
17 No W Section Pales - each of these pales is 2.0mm thick (other
palisade pale gauges are available upon request). As standard these
palisade pales come with a Triple Point head.
1 No Excavated Post - these posts are 100 x 55 IPE section dig-in
posts as standard, but we can also supply bolt down palisade posts
upon request. Please note that you may wish to order an extra post
for the end of your palisade fencing run.
1 No Horizontal Top Rail - 50 x 50 x 5 RSA
1 No Horizontal Bottom Rail - 50 x 50 x 5 RSA
34 No M8 Bolts - palisade pale fixings
4 No M12 Cup Sq Bolts & Permacone Nuts
2 No Loose 30 x 5 RSF Fishpaltes
Each palisade bay is Galvanised to BS EN ISO1461 as standard. We
can then powder coate these to meet your requirements, offering two
layers of protection.
Specification
Paling Profiles
Available in 2 standard profiles - ‘W’ profile and ‘D’ profile.
Paling Tops
Available in 5 standard tops; Single point - Triple point - Square
- Round – Notched
Paling Thickness
Available in 3 standard gauges; 2.0MM - 2.5MM - 3.0MM
Horizontals
Available in 2 standard sizes according to height and site
requirements - 50x50x6mm or 65x50x6mm
| Fence height(mm) | W Panel Sections | Horizontal Rail Angle Section | Posts IPE Section | Posts Length(mm) |
| 1800 | 3mm | 50×50×6 | 98×55 | 2325 |
| 2100 | 3mm | 50×50×6 | 98×55 | 2725 |
| 2400 | 3mm | 50×50×6 | 98×55 | 3125 |
| 3000 | 3mm | 50×50×6 | 127×76 | 3925 |
| Fence Height(mm) | V Panel Sections | Horizontal Rail Angle Section | Posts IPE Section | Posts Length(mm) |
| 1800 | 2.5mm | 50×50×2.5-3 | 65×65 | 2125 |
| 2100 | 2.5mm | 50×50×2.5-3 | 65×65 | 2425 |
| 2400 | 2.5mm | 50×50×4 | 65×65 | 2800 |
| 3000 | 2.5mm | 50×50×4 | 65×65 | 3700 |
Drawing
Advantages
1. The galvanized steel pipe is selected and formed by T5 heat
treatment.It is integrally formed without solder joints,with bright
color and good overall strength.
2. The four-layer anti-corrosion treatment solves the problems of
rust and cracking on the surface of guardrail products that have
long been troubled.
3. The styles are complete,the appearance is elegant, the
protection is good,and the colors and styles support customized
drawings.
4. Any RAL series color(normal RAL 6005-Dark Green,RAL 9005-Black).
Application
Apartment building protection solutions
Industrial facilities protection solutions
Telecom&Mobile tower base station protection solutions
The airport & harbor protection solutions
Roads and railways protection solutions
The border protection solutions
Military defence and prison protection solutions
Packing and Shipping
1. plastic film/Pallet or according to customer's request
2. plastic film shrink with pallet or wooden
3. also can be customized
Our Service
1. 15 days after receiving the deposit shipment.
2. We will choose high quality low price of the shipping company.
3. Loading the goods, we will track all the way, to ensure product
safety, quick to arrive at the designated ports.
4. Arrival of the goods, we will provide installation instructions
and subsequent technical guidance.
5. Company for products and accessories, for a long time to be able
to provide various products accessories at cost to the customer at
any time.
